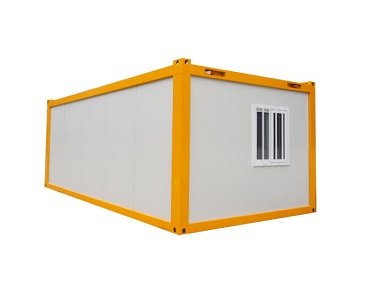

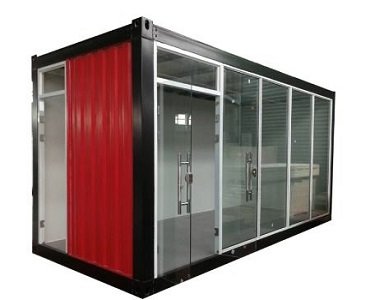

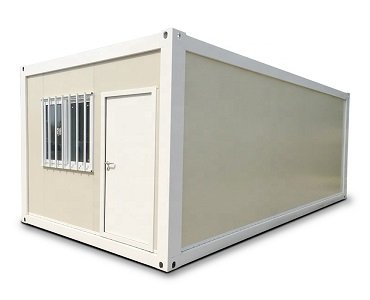

Flat Pack Container House
- Premier Flat Pack Container House Manufacturer
- Quality Tested Flat Pack Container House
- One-stop Solution Provided
- Cost-effective offers
Your Reliable Partner and Flat Pack Container House Manufacturer in China
Flat pack container house is fabricated with high-class raw materials. It is durable, affordable, and well designed. It surely meets special requirements perfect for business and personal needs.
Whether you need it for any purpose, Portacabinandprefab can give you a special offer. Portacabinandprefab develops services for 20 years of experience. You can locate our Portacabinandprefab factory in shanghai and Jiangsu province of China. We are able to fabricate steel structure buildings, sandwich panels, and trailers or portable houses.
In manufacturing flat pack container house, we have many engineers, architects, and many staffs that guide different processes. We have a complete device like CNC cutting machine, straitening machine, gas welding machine, shot blasting, and many other machines that are very useful in operations.
Portacabinandprefab is your premier manufacturer of flat pack container house!
- Gallery
- Data Sheet
| 1 | 20ft Dimension | External Size(mm) | 6058(L)×2438(W)×2791(H) |
| Internal Size(mm) | 5888(L)×2225(W)×2471(H) | ||
| Roof type | Flat roof with slightly slope. Roof drainage system | ||
| Floors allowed | ≤ 3 floors | ||
| 2 | Design specification | Lift span | 20 years |
| Floor live load | 2.5 KN/m² | ||
| Roof live load | 1.0 KN/m² | ||
| Wind load | 1.16 KN/m² | ||
| Seismic proof grade | 8 grade | ||
| 3 | Structure | Column | Galvanized cold roll steel, thk 3.0mm, Q235B |
| Primary roof beam | Galvanized cold roll steel, thk 3.0mm, Q235B | ||
| Secondary roof beam | Cold roll C steel, thk 1.5mm, Q235B | ||
| Primary floor beam | Galvanized cold roll steel, thk 4.0mm, Q235B | ||
| Secondary floor beam | Galvanized cold roll steel, thk 2.0mm, Q235B | ||
| Paint | 40μm epoxy zinc rich primer, 50μm chlorinated rubber topcoat | ||
| Maximum temperature | 500°C | ||
| Color | Any RAL color | ||
| 4 | Roof | Roof boarding | 0.5mm PPGI steel sheet, white grey |
| Insulation | 50mm mineral wool, 60kg/m3, fire rating A, non-inflammable | ||
| Ceiling | 50mm EPS sandwich panel (0.4mm PPGI/50mm EPS/0.4mm
PPGI) Or rock wool |
||
| 5 | Floor | Flooring | 2.0mm PVC flooring, |
| Sub-floor | 18mm fiber cement, density≥ 1.3g/cm3 | ||
| Insulation(optional) | 75mm rockwool, 60kg/m3, fire rating A, non-inflammable | ||
| Base plate | 0.5mm PPGI steel sheet, white grey | ||
| 6 | Wall panels | Thickness | 60mm EPS sandwich panel, 0.4mm PPGI/60mm EPS/0.4mm
PPGI, PE paint Color white |
| Insulation | 12kg/m3 EPS, | ||
| Option | 60mm rock wool sandwich panel, insulation 100kg/m3 rock wool, A grade fire rating, non-inflammable | ||
| 7 | Door (CE certificate) |
Dimension | 2100x900mm |
| Insulation | 40mm rock wool | ||
| Material | Aluminum frame sandwich panel door | ||
| Qty | 1 pc | ||
| 8 | Window with rolling shutter (CE certificate) |
Dimension | 800x1100mm |
| Frame material | UPVC | ||
| Glass | Double glazed toughened glass, 5+9A+5mm | ||
| Qty | 1 pc | ||
| 9 | Electricity | Electricity System | Different electrical standards to match with most countries in the world; such as CE, UL, CSA, AS, 220~250V |
| Electricity wire | Input wire 4mm2, stand type A/C wire 4mm2, wall type A/C wire 2.5mm2, switch 1.5mm2 | ||
| Socket | Fit for local standard, 3 pcs | ||
| Switch | 1 pc | ||
| LED light | Double 1200mm LED light, 2 pcs | ||
| 10 | Plumbing System (Option) | Clean Water | Φ20mm PPR |
| Waste water | Φ50mm&Φ110mm UPVC | ||
| 11 | Insulation test result | Floor | Thickness=80mm, U=0.25 W/m² K |
| Roof | Thickness=75mm, U=0.32 W/m² K | ||
| Wall panel | Thickness= 60mm,U=0.59 W/m² K | ||
| Window | Thickness= 5/9/5mm,U=1.4 W/m² K |
Ultimate Guide to Flat Pack Container House
Sunnnyda flat pack container house is easy to ship, install, and dismantle. Since we are able to supply worldwide, Portacabinandprefab ensure to maintain smooth process to prevent returns.
We, Portacabinandprefab is a professional fabricator of flat pack container house which makes your project easier and low cost advantage. This is more advantage when installing cabinets, shelves, windows, and many more.

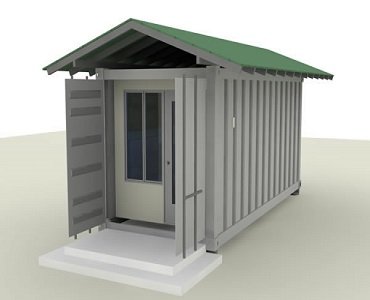

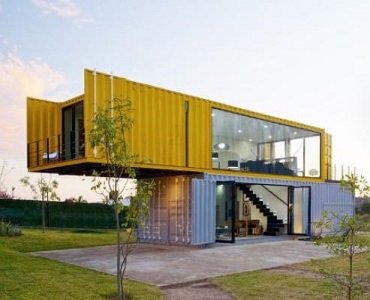

Portacabinandprefab flat pack container house is an expandable type whether it is vertical or horizontal space. We have two story sandwich panel flat pack container houses. When searching a reliable flat pack container house, you can consider Portacabinandprefab as your good provider.
We can make your ideal designs, sizes, and customizations for your flat pack container house request. You can send your own layout for flat pack container house. We have a lot of employees who make sure to sustain your needs.
Using flat pack container house is a great advantage. It is easy to install, clean, detach, maintain, and many more advantages and benefits.
Flat pack container house provides comfortable, special treatment, and durable benefits. It is more advantage than other type of house since flat pack container houses are convenient and safe from any disaster. The materials are lightweight and well designed.

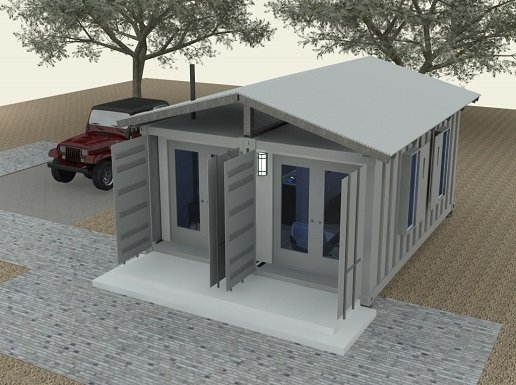

We can custom your flat pack container house design. You can draw your ideal flat pack container house and send it at Portacabinandprefab. We can make different dream house and provide satisfaction for every home and business owners.
When needed flat pack container house urgent, Portacabinandprefab can be your one-stop solution. We assure you to get an excellent and flat pack container house based on your demands.
If you urgently need flat pack container house, don’t hesitate to contact Portacabinandprefab. We are able to build great connections and relationships.
